• GGG .308 Win / 7.62 x 51mm NATO M80 BALL AMMUNITION - 147g FMJ Boxer Primed - Latest Batches

    £25.00 £22.00

    FACE TO FACE TRANSACTION ONLY WITH VALID UK FAC / UK Authority to Purchase.

    NO POSTAGE OR EXPORT ON AMMUNITION

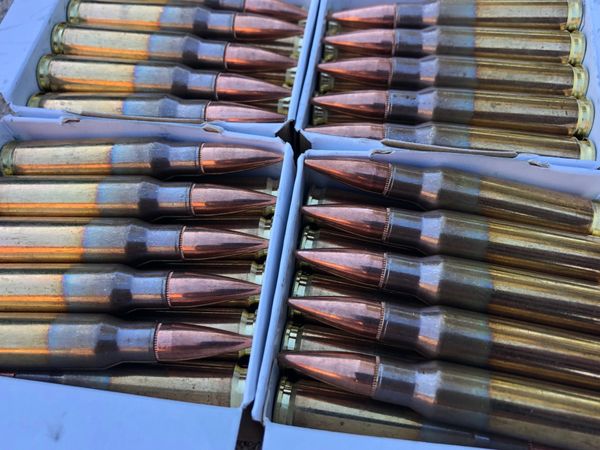

    GGG 7.62 x 51mm NATO BALL AMMUNITION - 147g FMJ Boxer Primed

    Latest Batches to choose from 2021 / 2019 / 2022 and 2023.4 coming soon

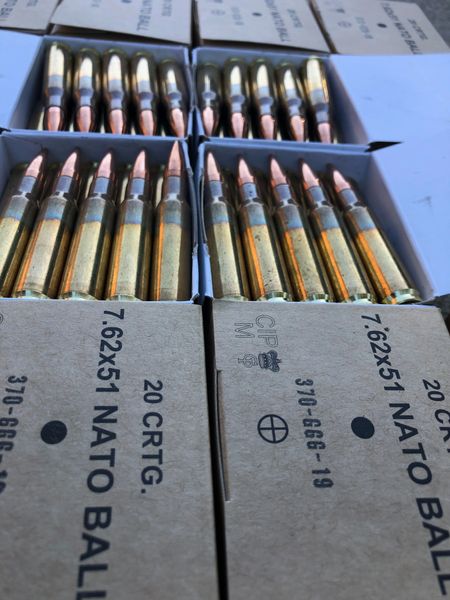

    Boxes of 20










    PRODUCT INFORMATION SHEET


    Available here:  http://www.ggg-ammo.lt/en/ggg-762x51-mm-nato-ball-cartridges-66




    CARTRIDGE 7.62 x51

     CALIBER:

    7.62x51

     SHEET:

    1/4

    DRAWN BY:

    N.Račiūnienė

    CHECKED BY:

    R.Bendaravičius

    DATE:

    30/01/2020 762 PIS GP11 02 This document is the property of AB Giraites Ginkluotes Gamykla (

    GGG). It may not be used, reproduced or disclosed to any 3rd party without its prior formal consent. This document is the property of AB Giraites Ginkluotes Gamykla (

    GGG). It may not be used, reproduced or disclosed to any 3rd party without its prior formal consent.

    7.62x51 NATO Ball Ammunition

    GENERAL INFORMATION

    7.62 mm BALL NATO ammunition produced in the company AB Giraitės ginkluotės gamykla (GGG)

    conforms to NATO STANAG 2310 requirements. It is qualified in according to the NATO manuals

    AC/225(LG/3-SG/1)D/9, PFP(NAAG-LG/3-SG/1)D(2004)1. NATO Design Number is AC/116 – 33A.

    This ammunition produced in accordance with C.I.P (Permanent International Commission for the

    Proof of Small-arms), ISO 9001:2015 (Quality Management Systems Requirements), ISO 2859-1

    (Sampling Procedures and for Inspection by Attributes Part 1: Sampling Plans indexed by Acceptable

    Quality Level (AQL) for lot-by-lot inspection), ISO 3951 (Sampling Procedures and Charts for

    Inspection by Variables for Percent Defective) requirements. Ammunition can be fired from NATO

    nominated 7.62 mm weapon: L7A2 and M240B machine gun. The cartridges 7.62x51 is designed for

    use in the FN MAG, MG3, M60, NF1 machine gun and FN FAL/LAR, G3A2, M14 assault rifles too.

    TECHNICAL SPECIFICATIONS

    1. Table. Technical specifications

    Caliber 7.62 mm

    Waterproofing

    lacquer

    Case mouth and caseprimer

    joint are

    waterproof sealing

    Total length mm 71,12 - 0,76

    Total weight g 24,40Å}1,00

    Bullet type Ball

    Bullet weight

    gr 147

    g 9,65 - 0,20

    Bullet lenght mm 28,95 - 1,00

    Bullet extraction N 265 N

    Bullet material

    Jacket – CuZn10; core –

    lead antimony (2,5 %)

    Case material CuZn30

    Case length mm 51,18 - 0,38

    Propellant type Double base, smokeless

    Primer

    type BOXER

    Percussion, non

    corrosive, non mercuric

    BALLISTIC PROPERTIES

    Compatibility: STANAG 2310, AC/225 (LG/3-SG/1) D/9, PFP (NAAG-LG/3-SG/1) D(2004)1.

    71.12-0,76

    0

    Ø 8.7 maks.

    Bullet

    51.18-0,38

    0

    Jacket

    Lead core

    Propellant

    Case

    28.95-1

    0

    Prime

    X

    X

    62

    7.

    PRODUCT INFORMATION SHEET

    CARTRIDGE 7.62 x51

     CALIBER:

    7.62x51

     SHEET:

    2/4

    DRAWN BY:

    N.Račiūnienė

    CHECKED BY:

    R.Bendaravičius

    DATE:

    30/01/2020 762 PIS GP11 02 This document is the property of AB Giraites Ginkluotes Gamykla (

    GGG). It may not be used, reproduced or disclosed to any 3rd party without its prior formal consent. This document is the property of AB Giraites Ginkluotes Gamykla (

    GGG). It may not be used, reproduced or disclosed to any 3rd party without its prior formal consent.

    ELECTRONIC PRESSURE, VELOCITY AND ACTION TIME (EPVAT), KIAG 6215

    PRESSURE TRANSDUCER

    Ammunition

    temperature

    21 ÅãC + 52 ˚C – 54 ˚C

    Velocity at 24 m,

    m/s

    V = 823  15 - 75  V +52ÅãC - V 21ÅãC  + 45 - 75  V -54ÅãC - V 21ÅãC  + 45

    Case mouth

    pressure, bar

    P + 3 SD  4450

    -1100  P +52ÅãC - P 21ÅãC  +550

    P +52ÅãC  4600

    -1100  P -54ÅãC - P 21ÅãC  +550

    P -54ÅãC  4600

    Port pressure, bar P - 3 SD  560 – –

    Action time for

    single round, ms

    T  4 – –

    Muzzle energy, J E  2931 – –

    Bullet energy at 24

    m, J

    E  2756 – –

    V = corrected mean velocity

    P = corrected mean pressure

    PRECISION at distance 550 m Horizontal standard deviation Vertical standard deviation

    200 mm  200 mm

    FUNCTION AND CASUALTY Permissible percentage of defects was not exceeded

    TRAJECTORY MATCH Vertical match Horizontal match

    At distance 300 m

    At distance 550 m

    125 mm

    275 mm

    175 mm

    385 mm

    TERMINAL EFFECTS at distance 550 m

    Perforations

    Mild steel plate

    Aluminium witness screen (0,3 m behind

    steel plate)

    90 %

    3,5 mm (SAE 1010 / 1020, hardness RB 55–70)

    0,5 mm 2024T3

    PRIMER SENSITIVITY Test ball H + 5 SD H – 2 SD

    Critical height method (run-down)

    . 30 mm

    (111,7 Å} 0,57) g

    500 mm  75 mm

    WATERPROOF TEST

    Vacuum pressure not less 50 KPa

    Time not less 30 s

    No more than 15% leaky rounds

    MARKING

    Minimum marking of cartridge and it’s packaging is done in accordance with STANAG 2953 (AOP

    – 2C):

    PRODUCT INFORMATION SHEET

    CARTRIDGE 7.62 x51

     CALIBER:

    7.62x51

     SHEET:

    3/4

    DRAWN BY:

    N.Račiūnienė

    CHECKED BY:

    R.Bendaravičius

    DATE:

    30/01/2020 762 PIS GP11 02 This document is the property of AB Giraites Ginkluotes Gamykla (

    GGG). It may not be used, reproduced or disclosed to any 3rd party without its prior formal consent. This document is the property of AB Giraites Ginkluotes Gamykla (

    GGG). It may not be used, reproduced or disclosed to any 3rd party without its prior formal consent.

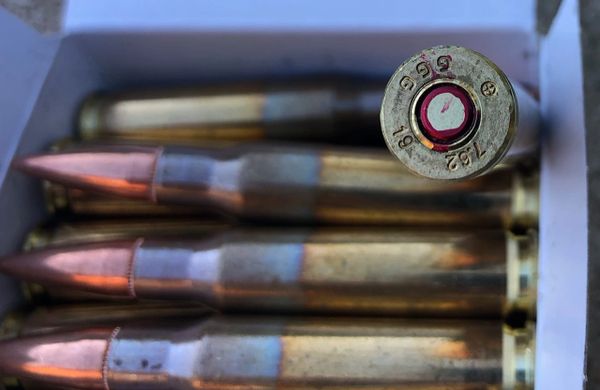

    - Stamped on the base of cartridge case:  NATO design mark

     Manufacturer’s initials

     Caliber

     Last two digits of year of manufacture

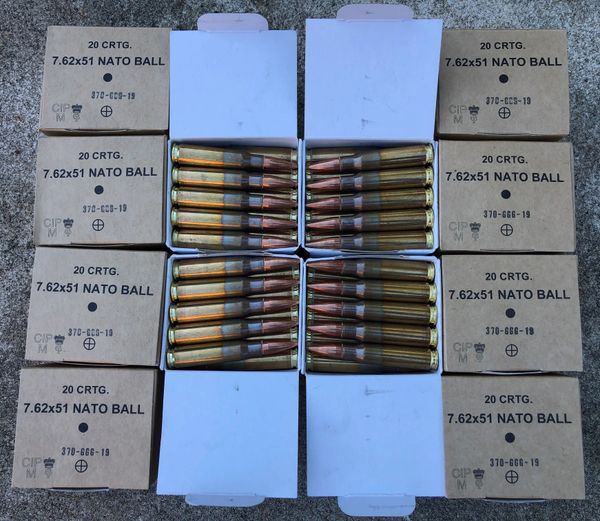

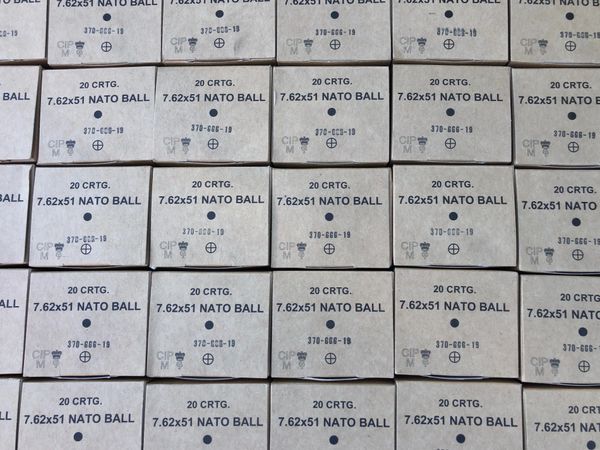

    - Marking on the internal carton box:  Quantity of cartridges in the box

     Caliber

     Type of bullet

     Lot number

     NATO design mark

     Recycle marks of manufacturer

    - Marking on the external carton or metal box:

     NATO stock number (NSN)

     Quantity of cartridges in the box

     Type of bullet

     Caliber

     NATO design mark

     Lot number

     Net weight

     Net explosive quantity

     Gross weight

     Volume

     Proper chipping name

     Certification number of the outer box

     UN number

     Explosive hazard orange mark

     Recycle marks of package

     Serial number label of box

    PACKAGING

    7.62x51 cartridges supplied in either outer carton or metal M2A1 boxes which are palletized.

    The boxes and pallets should be marked according to the requirements of the customer.

    2. Table. Cartridges packaging and units

    Number of

    packing option

    Palletization

    option

    PACKING OPTION

    UNITS

    Quantity of cartridges Dimension, mm

    Net

    weight,

    kg

    Gross

    weight,

    kg

    NSN 1305-47-000-1192

    1

    Internal carton box 20 72 x 61 x 43  0,5

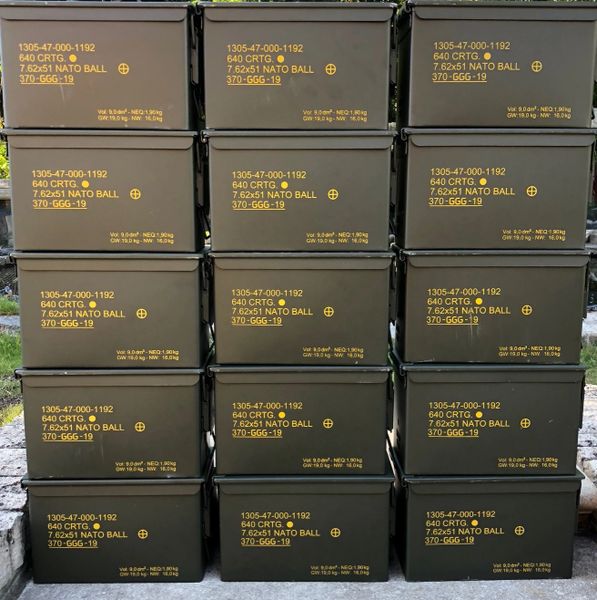

    External Metal box M2A1 640 305,6 x154,8 x190,5 16,0 19,0

    1.1 EUR pallet 30720 920x1250x520 737,0 941,0

    1.2 EUR pallet 35840 1080x1250x520 860,0 1097,0

    PRODUCT INFORMATION SHEET

    CARTRIDGE 7.62 x51

     CALIBER:

    7.62x51

     SHEET:

    4/4

    DRAWN BY:

    N.Račiūnienė

    CHECKED BY:

    R.Bendaravičius

    DATE:

    30/01/2020 762 PIS GP11 02 This document is the property of AB Giraites Ginkluotes Gamykla (

    GGG). It may not be used, reproduced or disclosed to any 3rd party without its prior formal consent. This document is the property of AB Giraites Ginkluotes Gamykla (

    GGG). It may not be used, reproduced or disclosed to any 3rd party without its prior formal consent.

    Continue of Table 2. Cartridges packaging and units

    Number of

    packing option

    Palletization

    option

    PACKING OPTION

    UNITS

    Quantity of

    cartridges

    Dimension, mm

    Net

    weight,

    kg

    Gross

    weight,

    kg

    2

    Internal carton box 20 72 x 61 x 43  0,5

    External carton box 600 321x154x183 15,0 16,0

    2.1 EUR pallet 38400 800x1200x900 921,0 1053,0

    2.2 Strengthened EUR pallet 42000 1000x1200x810 1008,0 1187,0

    SHIPPING AND STORAGE DATA

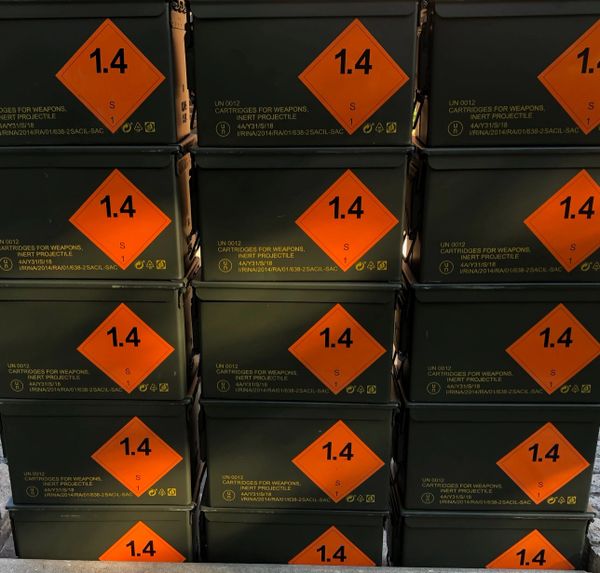

    Proper shipping name – Cartridges for weapons, inert projectile

    Hazard classification code – 1.4 S

    UN serial number – UN 0012
