MAGLOAD NEXUS PRO 3 GUN PRACTICAL SHOTGUN 12 Bore Modular Self Adjusting Shotgun Cartridge System 24 Rounds
The Nexus PRO
We’ve taken the widely successful NEXUS system and created what we think is the best quadloader in the world.
Lighter, stronger, faster with even MORE versatile!
- Hyper lightweight, the lightest self adjusting loader in the world!
- Bigger magnets, without sacrificing grab quality
- More retention, without sacrificing grab quality
- Adjustable hand space
- Adjustable spring tension
- Can be set up left or right handed
- Most compact loader in the world
- Self adjusting, set and forget!
- Corrosion free
The PRO comes with:
- Your loader
- PS51 Industrial Velcro, cut to size, with alcohol swab
- Tek Lok spacers
- 10mm and 5mm spring adjustment spacers
- Nexus PRO 8 – 178g
- Nexus PRO 12 – 265g
- Nexus PRO 14 – 305g
- Nexus PRO 20 – 428g
- Nexus PRO 24 – 527g
- Nexus PRO 28 – 617g
- Nexus PRO 32 – 695g
Nexus is a set and forget system which will take any cartridge with an unfired length from 50-67.5mm. That means any cartridge, bird, buck or slug that you would use in training or competition will fit in the Nexus system with no further adjustment. The Nexus system can be set up either left or right handed and changed at any time using just one allen key.
The Nexus system is built with IPSC in mind and therefore conforms perfectly to IPSC rules, but the Nexus PRO is even more suitable to 3 gun and other disciplines than ever before.
Can be set up right or left handed
Load twins or quads whenever you want
Self adjusts to fit any cartridge in use in dynamic shooting
Can be fitted to Tek Loks, ELS clips or used with a Velcro belt
Adjustable spring tension
Adjustable hand clearance
8, 12, 14, 20, 24, 28 and 32 round configuration available
The Nexus is just 50mm from front to back, including cartridges (49mm without). There is no danger of exceeding the IPSC 75mm rules even with a loose belt or a thick attachment mechanism (Tek Lok or Velcro).
The Nexus loader is the most compact it can possibly be to help fit within the 170mm belt width rulings. It is only ever 8mm longer than the cartridge you put in as it regulates it’s own size depending on the ammo used. An empty caddy will move out of the way for you when crouching or lunging.

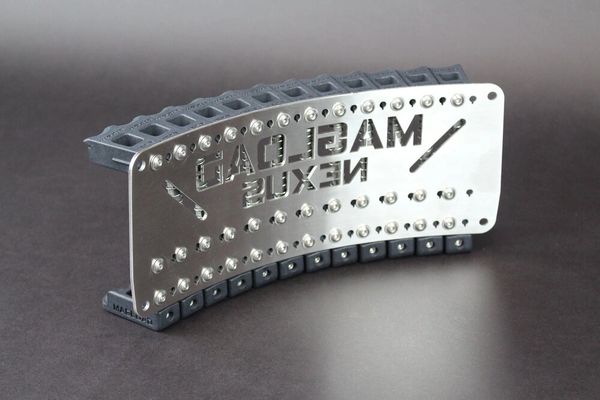

Aerospace grade aluminium backplate, hard anodised
The plastic parts are made using the latest in 3D manufacturing technology with the some of the best industrial machines available. From -50 degrees C, to 150 degrees C; the Nexus Pro will always work as you expect it to!
Minimal to no maintenance required, self cleaning even through the thickest of mud and sand. We still recommend a wipe down if you abuse it!
We are using the latest in materials technology to utilise spring systems that will be long lasting and corrosion free.
The loader does not need to be oiled, however if you choose to do so the bulk of the oil will be held within the bushing inside specially designed channels, away from dirt and self regulated onto the sliding parts as needed.
Further customisation is possible, just email us to enquire!
Easy to use
The Nexus PRO will be supplied in a ready-to-assemble state with clear and comprehensive instructions. It can also be supplied in the traditional disassembled state to enable you to do the initial Right or Left handed setup out of the box.
Set and forget. Once the loader is assembled it never needs to be adjusted as it will self adjust to any usable cartridge length.
Low release force and natural release directions just like the Double Quad Loader. We still disagree with magnets being the primary retention mechanism as you have to break the force of those magnets to load. We use our 1.1kg release force magnets to locate the top shell and nothing more. With a properly designed loader it’s not necessary to rely on the magnets.
When emptied of ammo the loader collapses down to the smallest possible footprint. An empty loader will not get in the way during bending, crouching or any other form of PSG acrobatics.
