• Schmidt & Bender 3-20x50 PM II Ultra Short LP Police Reticle - 1cm cw DT35 MTC LT - Precision Rifle Scope

    £3,095.00

    There is only 1 item left in stock.

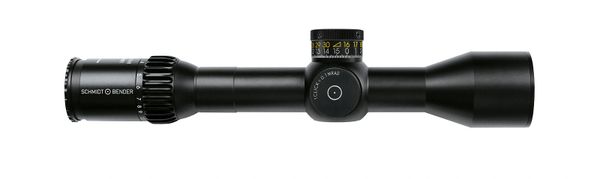

    The 3-20x50 PM II Ultra Short, with its 34.5 cm length, is the significantly shortened version of the normal 3-20x50 PM II.

    It was developed for use with attachments on short rifles.

    The low-profile elevation turret with a large 35 MIL/84 MOA adjustment range can easily be combined with a red dot sight for close distances.

    The precise parallax adjustment, the brilliant optical performance and a large field of view on low power makes this Ultra Short a perfect scope for medium- and long-range targets.






    Weight (g) 903
    Lengh (mm) 340
    Tube diameter (mm) 34

    Magnification 3-20x
    Objective lens diameter (mm) 50
    Field of  view (m) 13.0 - 2.1
    Exit pupil (mm) 11.4 - 2.5
    Eye relief distance (mm) 90
    Twilight factor 12.2 - 31.6
    Transmission 90
    Focal plane 1. & 2.

    Diopter -3 to +2
    Parallax adjustment 25 - ∞
    Illumination 11 settings

    Adjustment DT27 MTC LT / ST ZC CT
    Adjustment value / Click 1 cm / ¼ MOA
    Elevation (Turret) 270 cm/100 m / 66 MOA
    Windage (Turret) ±60 cm/100 m / ±15 MOA

    Adjustment DT35 MTC LT / ST ZC CT
    Adjustment value / Click 1 cm / ¼ MOA
    Elevation (Turret) 350 cm/100 m / 84 MOA
    Windage (Turret) ±60 cm/100 m / ±15 MOA

    Adjustment DT II+ MTC LT / ST II ZC LT
    Adjustment value / Click 1 cm / ¼ MOA
    Elevation (Turret) 305 cm/100 m / 77 MOA
    Windage (Turret) ±60 cm/100 m / ±18 MOA

    Waterproof (mbar) 25 m
    Temperature range
    Storage -55 to 70 °C
    Function -25 to 50 °C

    Turret Types cw/ccw

    Colors Black/RAL 8000/Pantone 7504 M

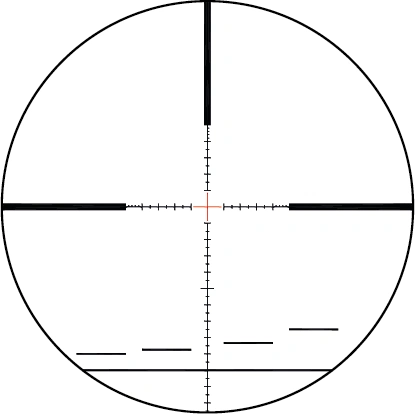

    Reticles P4FL (FFP), PF4L-MOA (FFP), MDR (FFP), MSR2 (FFP), GR²ID (FFP), H59 (FFP), Tremor3 (FFP), P4FL (SFP)

    cw = clock wise
    ccw = counter clock wise

    Watch the video:  https://youtu.be/K-66nSBGMZg



    Export restricted.
