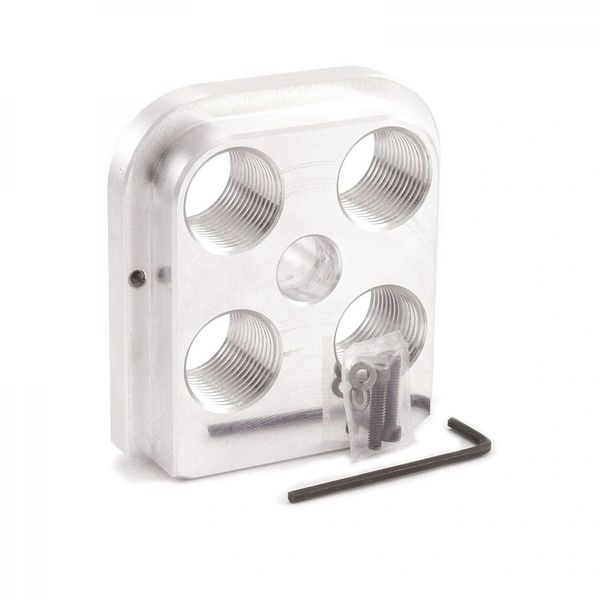

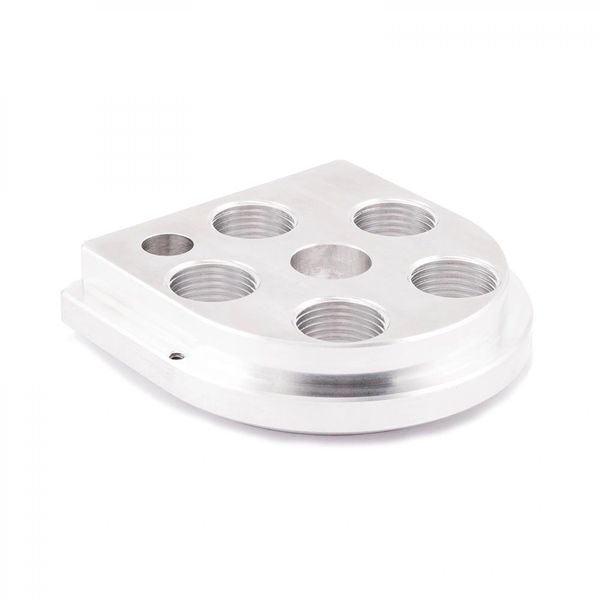

UniqueTek CNC Machined Dillon 550 / 650 Toolhead Replacement Precision Toolheads
£58.00
The toolhead is the final link between your dies and your press so it only makes sense that quality is extremely important. With over $100.00 of dies, powder measure, and other accessories mounted in your toolhead, don't you want to know it's the best available!
Tighter Tolerances
These toolheads are made to the highest standards by Whidden Gunworks. All critical machining is done on one operation, yielding tolerances of 0.0002" on all critical dimensions. This means that all die mounting holes are positioned precisely relative to each other and are exactly perpendicular to the flange. The flange is also flatter than possible with a cast toolhead. The 7/8"-14 die mounting threads are machined to Class 2B tolerance to better mate with the threads on your dies. This results in the dies being more accurately centered in each hole and reduces offset when tightening the die locknut.
6061-T6 Aluminum Alloy
The toolheads are machined from 6061-T6 aluminum alloy. The T6 tempering process yields an ultimate tensile strength of at least 42,000 psi. The result is a toolhead that is about 50% lighter than a cast toolhead, but also much stronger. These toolheads are thinner but have no voids or cavities on the bottom.
Locator Pins or Clamped?

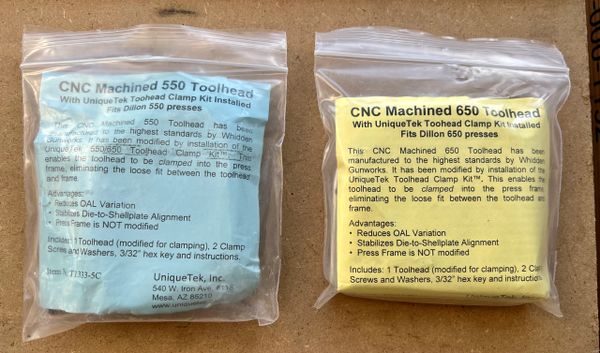

These toolheads are available in either the standard form or with the UniqueTek Toolhead Clamp Kit™ parts pre-installed. The "standard" toolheads mount in the press using the locator pins, just as any original Dillon toolhead. The Clamped toolheads mount with Grade 8 alloy screws that come with the toolhead. You can read more details about the benefits of clamped toolheads on the product page for the UniqueTek Toolhead Clamp Kit™.*
Dillon XL650 Clamped ToolheadFirst I would like to start by saying I have made all of the available upgrades to my new XL650 as I could. Most of them from Unique Tech and others from a few online vendors with the same goal in mind and that is to smooth out the operation of the 650. Now on to the issue. I was having serious issues with powder (+/-0.5) and overall length(+/- .009 variation). I called Unique Tech and asked for some help to see if I was doing things properly. I was on the phone with Lee for a quite a while and he was more than helpful and gave me some great ideas for improving my process, however the one thing we both agreed upon was the fact that my tool head was pinned not clamped allowing movement. Which yes that's how Dillon designed it. However I was willing to try the clamped tool head because the "idea" made perfect sense. How can I be consistent with all of that movement. Originally I was trying to throw 5.0 grains of VV N320 but I was getting anywhere between 4.9 to 5.4 grains and my extreme spreads where outrageous which is a scary thing when running a custom 2011 and trying to make power factor at a match or be a consistent shooter. I received the clamped tool head and installed it immediately following the included instructions to the letter. I began to "dial" in the press also dialing in the Unique Tech micro adjust powder bar(which is a must have!!!) and threw about 15 or 20 drops of powder. Once I was getting a consistent 5.0 gr. I then threw 15 straight drops and the final number was 75.2gr. on my digital scale which is an average of 5.013333gr!! Amazing! Then I checked OAL, now I know there is some variation in the bullet making process especially when dealing with hollow points. However, my goal was 1.184in for my .40cal and I was able to adjust the die to consistently get 1.183/1.184 which is +/- 0.001!!! I called Lee back to thank him and he was not surprised. I looked online and read some comments that made the clamped tool head sound like "snake oil" and was worried that it may not be what I needed. That information couldn't be farther from the truth! I have been away and have not been able to check the numbers on my Lab Radar but I'm going to guess they will be much more consistent! VERY VERY PLEASED!!!!
Clamped tool head (550)I have 14 clamped tool heads now. They are all for rifle cartridges that I reload regularly. The main reason for this is that I found variances in OAL and crimp locations. Going to a clamped tool head has remedied the problem and my OAL variance is now+ or - .001". Using the clamped tool head for my recently added case trimmer resulted in zero variances in case length. Enough said. Now, every tool head will now be a clamped tool head. Just bought 4 more.
550 running better than everJust received a machined toolhead with the clamping screws. What a difference this makes. It doesn't depend if you are running a single shell through or toolhead is completely full you get less variance in the OAL than the original toolhead. Only using on 9mm at the time but when I start loading more with other calibers will be buying more.
Tighter Tolerances
These toolheads are made to the highest standards by Whidden Gunworks. All critical machining is done on one operation, yielding tolerances of 0.0002" on all critical dimensions. This means that all die mounting holes are positioned precisely relative to each other and are exactly perpendicular to the flange. The flange is also flatter than possible with a cast toolhead. The 7/8"-14 die mounting threads are machined to Class 2B tolerance to better mate with the threads on your dies. This results in the dies being more accurately centered in each hole and reduces offset when tightening the die locknut.
6061-T6 Aluminum Alloy
The toolheads are machined from 6061-T6 aluminum alloy. The T6 tempering process yields an ultimate tensile strength of at least 42,000 psi. The result is a toolhead that is about 50% lighter than a cast toolhead, but also much stronger. These toolheads are thinner but have no voids or cavities on the bottom.
Locator Pins or Clamped?
These toolheads are available in either the standard form or with the UniqueTek Toolhead Clamp Kit™ parts pre-installed. The "standard" toolheads mount in the press using the locator pins, just as any original Dillon toolhead. The Clamped toolheads mount with Grade 8 alloy screws that come with the toolhead. You can read more details about the benefits of clamped toolheads on the product page for the UniqueTek Toolhead Clamp Kit™.*
| Specifications | |
| Material | 6061-T6 Aluminum |
| Tolerance | 0.0002" (all critical dimensions) |
| Thread Tolerance | Class 2B |
| Weight | 8.0 oz - 550 11.5 oz - 650 |
| Features | Benefits |
| Tighter Dimensional Tolerances | Positions Dies More Accurately |
| T6061-T6 Aluminum | Lighter but Stronger than Cast Toolheads |
| Clamped and Un-Clamped Types Available | Options to Meet Your Needs |
Customer Reviews
|
|
Average rating from 3 reviews: 5.0 |
