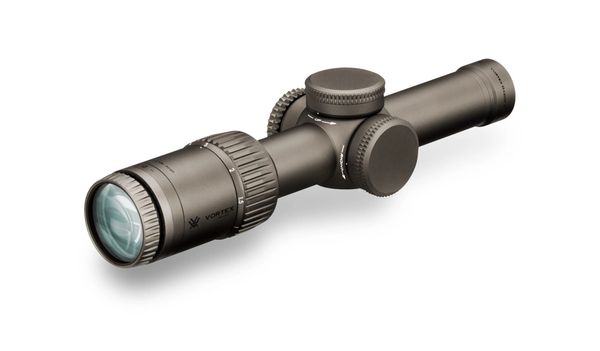

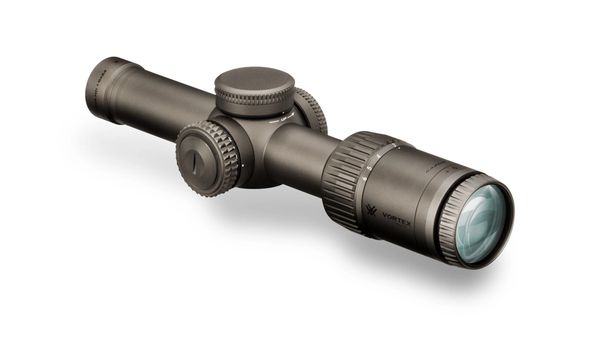

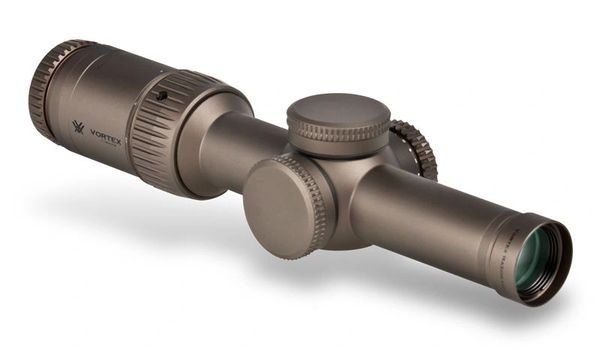

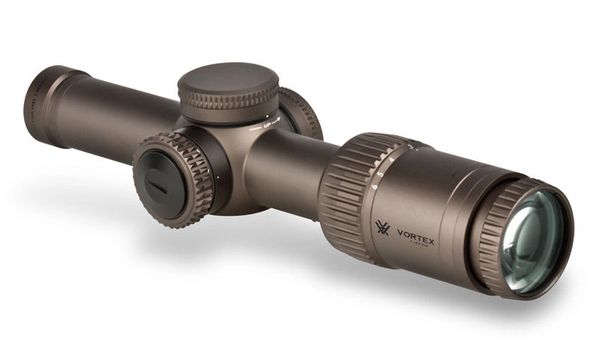

VORTEX RAZOR HD GEN II E 1-6x24 RIFLE SCOPE VMR-2 MRAD MOA RETICLE RZR-16009 16010 SHOOTING OPTICS

At nearly 1/4 pound lighter than the original Razor HD Gen II 1-6x24, the "E" (Enhanced) model allows for quicker transitions between targets and less arm fatigue during long days on the range.

Perfect for the AR platform, the Gen II-E 1-6 is a top-tier optical solution for short to medium-range shooting scenarios. Optically, it delivers the highest level of clarity, resolution, colour accuracy, light transmission and edge-to-edge sharpness.

True 1x on the low end is complemented by an ultra-forgiving eye box with generous eye relief for a heads-up-display-like sight picture and daylight bright illuminated centre dot in the reticle for extremely fast target acquisition in close quarters.

Ultra-sleek and built like a tank on a 30mm, aircraft-grade aluminium tube, the Razor HD Gen II-E 1-6x24 features an ultra-low profile, capped windage and elevation turrets for streamlined performance.

Zero-resettable turrets offer 50 MOA (20 MRAD) of adjustment in a single turn, ensuring ample travel.

Choice of 2 models available:

RZR-16009 & RZR-16010

Please check direct with Vortex if you need to check any detailed specifications.

FEATURES

OPTICAL FEATURES

APO System Index-matched lenses correct color across the entire visual spectrum.

Optically Indexed Lenses Optimize image sharpness and brightness from edge to edge.

HD Lens Elements Premium extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in high-definition images.

XR™ Plus Fully Multi-Coated Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.

Plasma Tech Cutting edge coating application process provides unparalleled coating durability and performance

Second Focal Plane Reticle Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.

Illuminated Center Dot Daylight bright illuminated center dot provides a precise point-of-aim in all lighting conditions.

Locking Illumination Locks illumination at preferred setting.

CONSTRUCTION FEATURES

Tube Size 30 mm diameter provides maximized internal adjustment and strength.

Single-Piece Tube Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.

Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.

Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.

Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.

Shockproof Rugged construction withstands recoil and impact.

Hard Anodized Finish Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.

ArmorTek ® Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.

Large Diameter Turrets Provide fast, accurate and easily read elevation and windage adjustments. Caps provide external protection for turret.

INTERNAL MECHANISM DESIGN FEATURES

Friction Reduction System Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and

Turret Screws Provides low-friction, wear-resistant performance: precision-machined from a silicon-brass alloy and treated with an advanced dry-film lubricant. Turret screw threads are precision machined to sub-2 micron tolerances (less than 78-millionths of an inch).

Erector Tube System Precision-machined from aircraft grade aluminum with anti-galling properties for a lighter weight, strong, durable tube. Stainless Steel offset coil spring erector biasing system withstands much higher stresses than traditional flat erector springs and al.

CONVENIENCE FEATURES

Fast Focus Eyepiece Allows quick and easy reticle focusing.

Locking Side Illumination Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting.
